Wholesale From Factory 2D15 WC Series Insert Indexable U Drill

  • Type: Indexable Drill Bit
  • Material: 42CrMo
  • Sales Model: Wholesale
Availability:
Quantity:
Inquire Add to Basket

  • As per specifiied

  • RV

  • 8207509000

  • Zhuzhou, China

  • 10 pcs

  • 20000Pcs/Month

  • T/T, Western Union, Paypal, Money Gram

Product Parameters

WC12D WC尺寸描述图



WC2

Specification and Model D d L1 Ls L Insert model Screw Wrench
C20-2D15-33WC03 15 20 33 44 92 WC__030208 M2.5×5 T8
C20-2D15.5-34WC03 15.5 34 93
C20-2D16-35WC03 16 35 94
C20-2D16.5-36WC03 16.5 36 95
C20-2D17-37WC03 17 37 96
C25-2D17.5-38WC03 17.5 25 38 56 109 WC__030208 M2.5×6 T8
C25-2D18-39WC03 18 39 110
C25-2D18.5-40WC03 18.5 40 111
C25-2D19-41WC03 19 41 112
C25-2D19.5-42WC03 19.5 42 113
C25-2D20-43WC03 20 43 114
C25-2D20.5-44WC03 20.5 44 115
C25-2D21-45WC04 21 25 45 56 116 WC__040208 M2.5x7 T8
C25-2D21.5-46WC04 21.5 46 117
C25-2D22-47WC04 22 47 118
C25-2D22.5-48WC04 22.5 48 119
C25-2D23-49WC04 23 49 123
C25-2D23.5-50WC04 23.5 50 124
C25-2D24-51WC04 24 51 125
C25-2D24.5-52WC04 24.5 52 126
C25-2D25-53WC05 25 53 127 WC__050308 M3x7 T10
C32-2D25.5-54WC05 25.5 32 54 60 134
C32-2D26-55WC05 26 55 135
C32-2D26.5-56WC05 26.5 56 136
C32-2D27-57WC05 27 57 137
C32-2D27.5-58WC05 27.5 58 138
C32-2D28-59WC05 28 59 139
C32-2D28.5-60WC05 28.5 60 140
C32-2D29-62WC05 29 62 143
C32-2D29.5-63WC05 29.5 63 144
C32-2D30-64WC05 30 64 148
C32-2D30.5-65WC05 30.5 65 149
C32-2D31-66WC06 31 32 66 60 150 WC__06T308 M3.5×8 T15
C32-2D31.5-67WC06 31.5 67 151
C32-2D32-68WC06 32 68 152
C32-2D32.5-69WC06 32.5 69 153
C32-2D33-70WC06 33 70 154
C32-2D33.5-71WC06 33.5 71 155
Specification and Model D d L1 Ls L Insert model Screw Wrench
C32-2D34-72WC06 34 32 72 60 156 WC__06T308 M3.5x8 T15
C32-2D34.5-73WC06 34.5 73 157
C32-2D35-74WC06 35 74 158
C32-2D35.5-75WC06 35.5 75 159
C32-2D36-76WC06 36 76 160
C32-2D36.5-77WC06 36.5 77 161
C32-2D37-79WC06 37 79 169
C32-2D37.5-80WC06 37.5 80 170
C32-2D38-81WC06 38 81 171
C32-2D38.5-82WC06 38.5 82 172
C32-2D39-83WC06 39 83 173
C32-2D39.5-84WC06 39.5 84 174
C40-2D40-85WC06 40 40 85 70 185
C40-2D41-87WC06 41 87 187
C40-2D42-89WC08 42 89 189 WC__080412 M4x10 T15
C40-2D43-91WC08 43 91 191
C40-2D44-93WC08 44 93 193
C40-2D45-95WC08 45 95 195
C40-2D46-97WC08 46 97 197
C40-2D47-99WC08 47 99 199
C40-2D48-101WC08 48 101 201
C40-2D49-103WC08 49 40 103 70 203
C40-2D50-105WC08 50 105 205
C40-2D51-107WC08 51 107 207
C40-2D52-109WC08 52 109 209
C40-2D53-111WC08 53 111 211
C40-2D54-113WC08 54 113 213
C40-2D55-115WC08 55 115 215
C40-2D56-120WC08 56 120 222
C40-2D57-122WC08 57 122 224
C40-2D58-124WC08 58 124 226
C40-2D59-126WC08 59 126 228
C40-2D60-128WC08 60 128 230
Work Material Hardness
 of Workpiece		 Cutting Speed
(m/min)		 Diameter of Drill(mm)
17.5-22 22.2-30 30.5-40 40.5-50
Steel 80-180 200-280 0.05-0.1 0.07-0.12 0.1-0.2 0.15-0.25
Steel 150-225 150-220 0.05-0.12 0.08-0.15 0.12-0.25 0.18-0.28
Low Alloy Steel 150-260 160-220 0.06-0.12 0.08-0.18 0.15-0.3 0.2-0.3
High Alloy Steel 150-240 120-180 0.05-0.1 0.06-0.15 0.12-0.2 0.18-0.25
Stainless Steel 150-250 100-200 0.05-0.1 0.07-0.12 0.12-0.2 0.15-0.22
Chisel Tool Steel 170-270 120-200 0.05-0.12 0.07-0.15 0.12-0.22 0.15-0.25
Cast Iron 160-220 120-180 0.1-0.17 0.15-0.2 0.18-0.25 0.2-0.3
Cast Alloy Iron 150-260 110-180 0.08-0.14 0.12-0.18 0.15-0.22 0.18-0.25
Aluminium Alloy 40-140 250-350 0.075-0.15 0.1-0.18 0.15-0.25 0.18-0.3
Cast Aluminium 50-150 220-280 0.1-0.2 0.15-0.22 0.18-0.3 0.22-0.35

Detailed Photos

IMG_20230223_135947

IMG_20230223_135518

IMG_20230223_135758

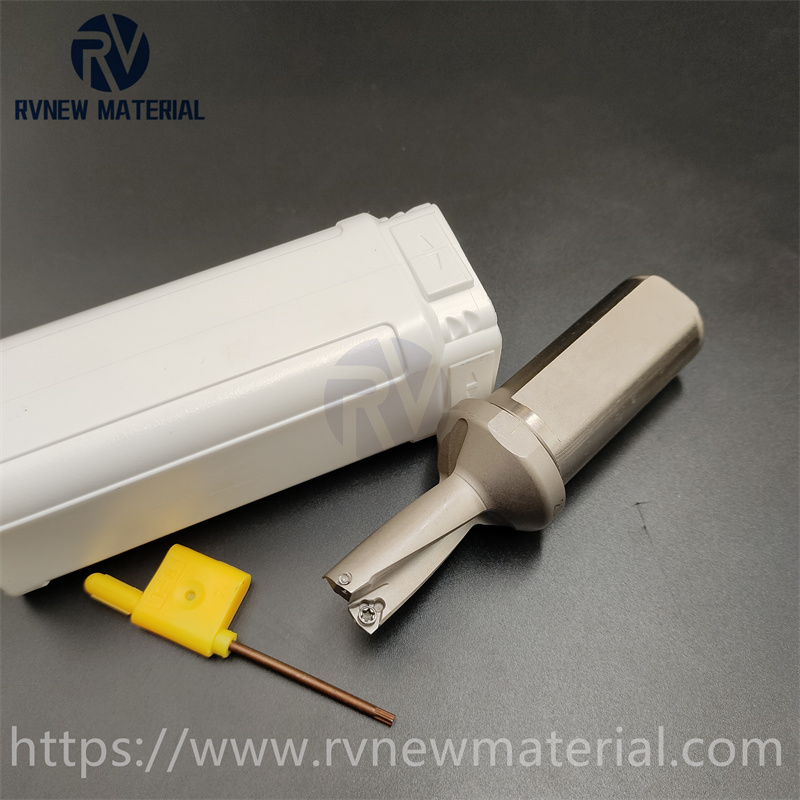

IMG_20230223_114130IMG_20230208_153352WC 和SP区别图

Company Profile

公司图+设备图03

Zhuzhou Rivictory New Material Co.,Ltd. is located in Zhuzhou, Hunan, which is Chinese industrial base.The main products are Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, we have our own research and development team, which can customize products according to customer's requests.

Production Process

加工过程

FAQ

1. Who are we?

Zhuzhou Rivictory New Material Co., Ltd. is located in Zhuzhou, Hunan, which is China's industrial base. The company's main products are tungsten carbide blanks, milling cutters, carbide rods,HSS drill bits, HSS bar, carbide burrs, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, the company has its own research and development team, which can customize products according to customer needs.
The company is committed to providing customers with the most suitable products and the best quality services and strives to promote our products to all parts of the world.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators.

4. Why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T, Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow.
