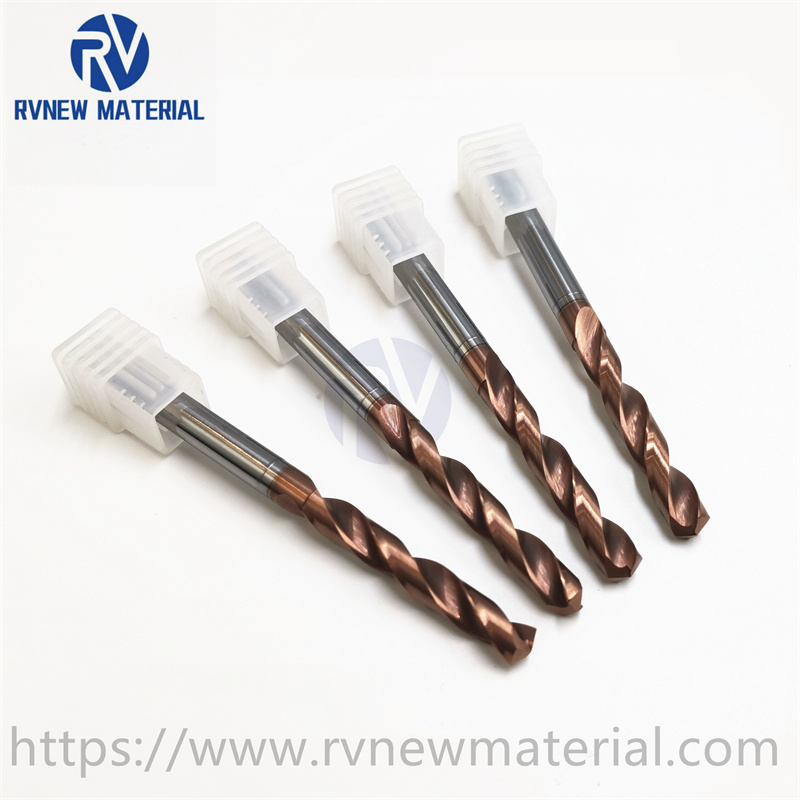

Solid Carbide Center Drill Bits D6X40xd6X70L for Lathe Bed

  • Type: Twist Drill Bit
  • Length: Jobber Length
  • Sales Model: Wholesale
Availability:
Quantity:
  • DCD60670

  • RV

  • 8207509000

  • Zhuzhou, China

  • 10 pcs

  • 10000Pcs/Month

  • T/T, Western Union, Paypal, Money Gram

Product Description

1. High quality raw material: The raw material is ultra micro grain-sized carbon tungsten, it has high toughness, improves the resistance of heat and impact.
2. Sharp cutting edge: Decreases the cutting resistance and torque.
3. Smooth and wide flute: Remove chips efficiently in high-speed cutting.
4. Polished surface treatment: Reduces the friction coefficient of lathe, improve the lathe efficiency.

Product Parameters

钻头尺寸表示图

Ordering Code

Tool Dia.(mm)

D

Flute Length(mm)
l
Shank Dia.(mm)
d

Overall Length(mm)

L

DCD30460 3.0 30 4 60
DCD31460 3.1 30 4 60
DCD32460 3.2 30 4 60
DCD33460 3.3 30 4 60
DCD34460 3.4 30 4 60
DCD35460 3.5 30 4 60
DCD37460 3.7 30 4 60
DCD38460 3.8 30 4 60
DCD39460 3.9 30 4 60
DCD40460 4.0 36 4 60
DCD41560 4.1 36 5 60
DCD42560 4.2 36 5 60
DCD43560 4.3 36 5 60
DCD44560 4.4 36 5 60
DCD45560 4.5 36 5 60
DCD46560 4.6 36 5 60
DCD47560 4.7 36 5 60
DCD48560 4.8 36 5 60
DCD49560 4.9 36 5 60
DCD50560 5.0 40 5 60
DCD51670 5.1 40 6 70
DCD52670 5.2 40 6 70
DCD53670 5.3 40 6 70
DCD54670 5.4 40 6 70
DCD55670 5.5 40 6 70
DCD56670 5.6 40 6 70
DCD57670 5.7 40 6 70
DCD58670 5.8 40 6 70
DCD59670 5.9 40 6 70
DCD60670 6.0 40 6 70
DCD61870 6.1 40 8 70
DCD62870 6.2 40 8 70
DCD63870 6.3 40 8 70
DCD64870 6.4 40 8 70
DCD65870 6.5 40 8 70
DCD66870 6.6 40 8 70
DCD67870 6.7 40 8 70
DCD68870 6.8 40 8 70
DCD69870 6.9 40 8 70
DCD70880 7.0 50 8 80
DCD71880 7.1 50 8 80
DCD72880 7.2 50 8 80
DCD73880 7.3 50 8 80
DCD74880 7.4 50 8 80
DCD75880 7.5 50 8 80
DCD76880 7.6 50 8 80
DCD77880 7.7 50 8 80
DCD78880 7.8 50 8 80
DCD79880 7.9 50 8 80
DCD80890 8.0 60 8 90
DCD811090 8.1 60 10 90
DCD821090 8.2 60 10 90
DCD831090 8.3 60 10 90
DCD841090 8.4 60 10 90
DCD851090 8.5 60 10 90
DCD861090 8.6 60 10 90
DCD871090 8.7 60 10 90

Detailed Photos

D4x36xd4x60L 01D6x40xd6x70L 04D4.2x36xd5x60L 08

Packaging & Shipping

包装信息


Company Profile

公司图+设备图03

Zhuzhou Rivictory New Material Co.,Ltd. is located in Zhuzhou, Hunan, which is Chinese industrial base.The main products are Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, drill bits, HSS bar, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, we have our own research and development team, which can customize products according to customer's requests.

Production Process

加工过程

FAQ

1. Who are we?
Zhuzhou Rivictory New Material Co., Ltd. is located in Zhuzhou, Hunan, which is China's industrial base. The company's main products are tungsten carbide blanks, milling cutters, carbide rods,HSS drill bits, HSS bar, carbide burrs, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, the company has its own research and development team, which can customize products according to customer needs.
The company is committed to providing customers with the most suitable products and the best quality services and strives to promote our products to all parts of the world.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators.

4. Why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T, Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow.
