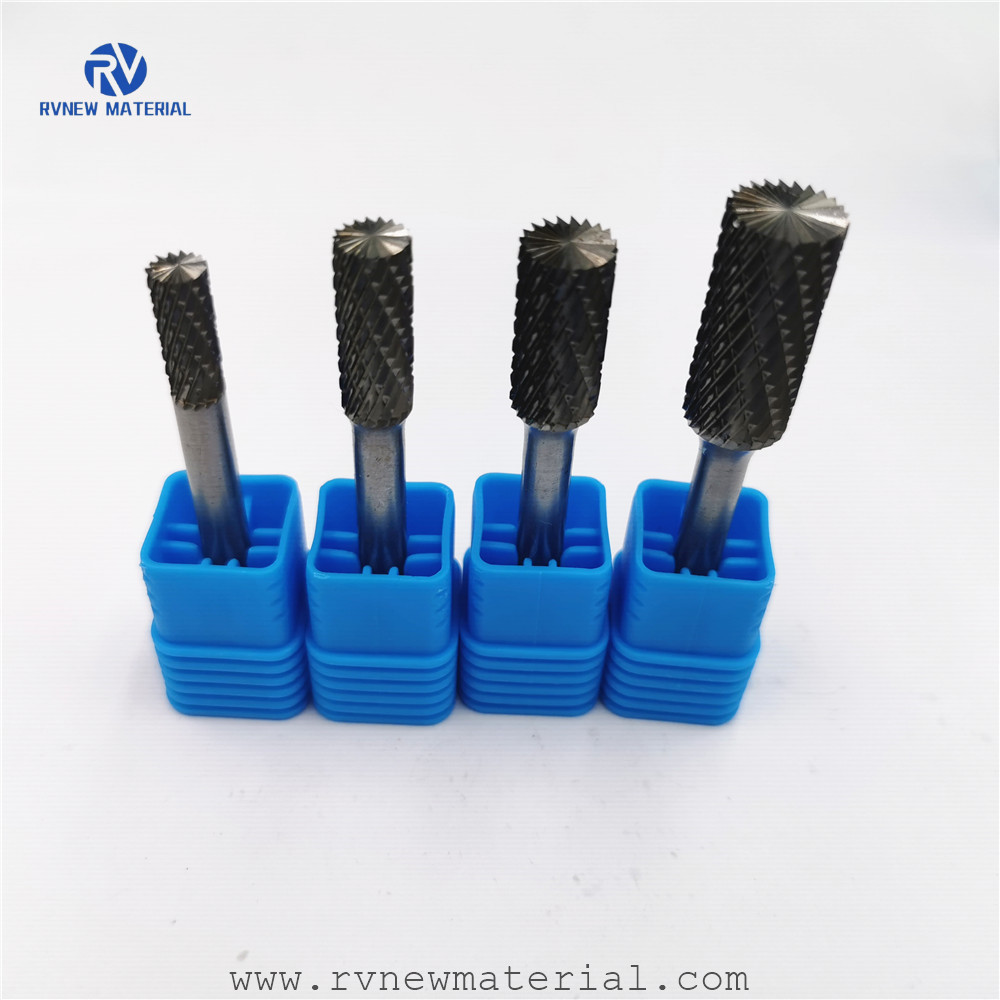

High Quality China Made Tungsten Carbide Burr Die Grinder Bit for Metal Aluminum Non Ferrous

Carbide Burrs or often recognized as Rotary Burrs for metal are widely used for cutting, shaping, grinding, removing sharp edges, burrs, and excess material (deburring). They perform the rapid removal of excess material on metals. The carbide burrs are also used in the removal of unshaped edges. Carbide burrs are used on coated abrasives before finishing or polishing. A Carbide or Rotary burr for metal is usually made either from tungsten carbide or from high strength steel (HSS). Tungsten carbide burr bits last longer and under higher temperatures, it doesn’t melt, and perform effectively.
Availability:
Quantity:
Inquire Add to Basket

  • SA SB SC SE SD SE SG SF SH SJ SK SL SM SN

  • RV

  • 10

  • 50000pieces/Month

  • T/T,L/c, Western Union, Paypal

旋转锉横幅Product Description


The use of carbide rotary burrs is extremely widespread applied in the mold processing manufacture. Included the process of bevel Edges machine parts, the inverted round and trench; the cleanup of casting, forging, weldment's edge, burr and welded joint; the processing of pipeline and impeller passage; the industrial art carving of metal and nonmetallic material(bone jade, stone etc).

Product Parameters

Guide to running speeds


            Diameter

Materials		 3mm 6mm 10mm 12mm 16mm
Steel 60,000~90,000 45,000~60,000 30,000~40,000 22,500~30,000 18,000~24,000
Hardened steel 60,000~90,000 30,000~45,000 19,000~30,000 15,000~22,500 12,000~18,000
Stainless steel 60,000~90,000 30,000~45,000 19,000~30,000 15,000~22,500 12,000~18,000
Cast iron 45,000~90,000 22,500~60,000 15,000~40,000 11,000~30,000 9,000~24,000
Titanium 60,000~90,000 30,000~45,000 19,000~30,000 15,000~22,500 12,000~18,000
Nickel 60,000~90,000 30,000~45,000 19,000~30,000 15,000~22,500 12,000~18,000
Copper/Copper alloys 45,000~90,000 22,500~60,000 15,000~40,000 11,000~30,000 9,000~24,000
Aluminium 30,000~90,000 15,000~70,000 10,000~50,000 7,000~38,000 6,000~30,000
Plastics 30,000~90,000 15,000~70,000 10,000~50,000 7,000~38,000 6,000~30,000
Cermet 60,000~90,000 30,000~45,000 19,000~30,000 15,000~22,500 12,000~18,000

D1: Cut Diameter
L2: Cut Length
D2: Shank Diameter
L1: Overall Length


Order No. Size
Cut Diameter
D1		 Cut Length
L2		 Shank Diameter
D2		 Overall Length
L1
A0313M03-45 3 13 3 50
A0413M04-45 4 13 4 50
A0616M06-45 6 16 6 61
A0820M06-45 8 20 6 65
A1020M06-45 10 20 6 65
A1225M06-45 12 25 6 70
A1425M06-45 14 25 6 70
A1625M06-45 16 25 6 70
B0313M03-45 3 13 3 50
B0413M04-45 4 13 4 50
B0616M06-45 6 16 6 61
B0820M06-45 8 20 6 65
B1020M06-45 10 20 6 65
B1225M06-45 12 25 6 70
B1425M06-45 14 25 6 70
B1625M06-45 16 25 6 70
C0313M03-45 3 13 3 50
C0413M04-45 4 13 4 50
C0616M06-45 6 16 6 61
C0820M06-45 8 20 6 65
C1020M06-45 10 20 6 65
C1225M06-45 12 25 6 70
C1425M06-45 14 25 6 70
C1625M06-45 16 25 6 70
D0303M03-45 3 2.7 3 50
D0403M04-45 4 3.6 4 50
D0605M06-45 6 5.4 6 50
D0807M06-45 8 7.5 6 52
D1009M06-45 10 9 6 54
D1210M06-45 12 10 6 55
D1412M06-45 14 12 6 57
D1614M06-45 16 14 6 59
E0610M06-45 6 10 6 55
E0813M06-45 8 13 6 58
E1016M06-45 10 16 6 61
E1220M06-45 12 20 6 65
E1422M06-45 14 22 6 67
E1625M06-45 16 25 6 70
F0313M03-45 3 13 3 50
F0618M06-45 6 18 6 63
F0820M06-45 8 20 6 65
F1020M06-45 10 20 6 65
F1225M06-45 12 25 6 70
F1425M0A45 14 25 6 70
F1625M06-45 16 25 6 70
G0313M03-45 3 13 3 50
G0618M06-45 6 18 6 63
G0820M06-45 8 20 6 65
G1020M06-45 10 20 6 65
G1225M06-45 12 25 6 70
G1425M06-46 14 25 6 70
G1625M06-46 16 25 6 70
H0307M03-45 3 7 3 50
H0618M06-45 6 18 6 63
H0820M06-45 8 20 6 65
H1025M06-45 10 25 6 70
H1232M06-45 12 32 6 77
H1636M06-45 16 36 6 81
J0605M06-45 6 5.2 6 50
J0807M06-45 8 7 6 52
J1008M06-45 10 8.7 6 53
J1210M06-45 12 10.4 6 55
J1613M06-45 16 13.8 6 58
K0603M06-45 6 3 6 48
K0804M06-45 8 4 6 49
K1005M06-45 10 5 6 50
K1206M06-45 12 6 6 51
K1608M06-45 16 8 6 53
L0313M03-45 3 13 3 50
L0413M04-45 4 13 4 50
L0616M06-45 6 16 6 61
L0822M06-45 8 22 6 67
L1025M06-45 10 25 6 70
L1228M06-45 12 28 6 73
L1428M06-45 14 28 6 73
L1633M06-45 16 33 6 78
M0313M06-45 3 13 3 50
M0413M06-45 4 13 4 50
M0618M06-45 6 18 6 63
M0820M06-45 8 20 6 65
M1020M06-45 10 20 6 65
M1225M06-45 12 25 6 70
M1425M06-45 14 25 6 70
M1625M06-45 16 25 6 70
N0607M06-45 6 7 6 52
N0809M06-45 8 9 6 54
N1011M06-45 10 11 6 56
N1213M06-45 12 13 6 58
N1616M06-45 16 16 6 61


Detailed Photos




Packaging & Shipping

Company Profile


Zhuzhou Rivictory New Material Co.,Ltd. is located in Zhuzhou, Hunan, which is Chinese industrial base.The main products are Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, we have our own research and development team, which can customize products according to customer's requests.

Production Process

FAQ


1. Who are we?
Zhuzhou Rivictory New Material Co., Ltd. is located in Zhuzhou, Hunan, which is China's industrial base. The company's main products are tungsten carbide blanks, milling cutters, carbide rods,HSS drill bits, HSS bar, carbide burrs, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, the company has its own research and development team, which can customize products according to customer needs.
The company is committed to providing customers with the most suitable products and the best quality services and strives to promote our products to all parts of the world.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators.

4. Why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T, Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow.
