Furniture Part 12 Inch 360° Rotating Hardware Black Color Strong Loading Swivel Plate for Office Furniture Chairs

Product Name: Furniture Turntable
Material: High - quality Cold - rolled Steel
Color: Baked Black Paint
Application Range:
Heavy - duty Machinery Turntable/Model Rotating Photography Platform/Rotating Exhibition Platform/Rotating Chair/Television Stand
The above measurements are manual, with slight errors. Please refer to the actual product dimensions.
Availability:
Quantity:
Inquire Add to Basket

  • 12 inch 300*300

  • RV

Furniture Part 12 Inch 360° Rotating Hardware Black Color Strong Loading Swivel Plate for Office Furniture Chairs

微信图片_20250506092639

222

Product Specifications
Model A Length/Width (mm) Rotating Ball Steel Plate Thickness (mm) Hole Diameter (mm) Total Thickness (mm) B Hole Pitch (mm) C Hole Pitch (mm) Diagonal Length (mm) Bearing Support Diameter (mm) Weight per Piece (KG)
6 - inch Turntable (30 pieces/box) 151 Semi - ball 1.5 20x7 21 191 123 206 130 0.65

151 Full - ball 1.5 20x7 21 191 123 206 130 0.685

151 Semi - ball 2.0 20x7 21 191 123 206 130 0.71

151 Full - ball 2.0 20x7 23 191 123 206 130 0.79
6 - inch Half Turntable (30 pieces/box) 156 Semi - ball 1.5 20x6 21 195 125 218 130 0.65

156 Full - ball 1.5 20x6 21 195 125 218 130 0.73

156 Semi - ball 2.0 20x6 23 195 125 218 130 0.78

156 Full - ball 2.0 20x6 23 195 125 218 130 0.82
7 - inch Turntable (20 pieces/box) 174 Semi - ball 2.0 22*8 24 214 134 240 135 0.95

174 Full - ball 2.0 22*8 24 214 134 240 135 1.05

174 Semi - ball 2.5 22*8 24 214 134 240 135 1.00

174 Full - ball 2.5 22*8 24 214 134 240 135 1.25
8 - inch Turntable (20 pieces/box) 196 Semi - ball 1.5 23x7 21 234 150 270 159 1.02

196 Full - ball 1.5 23x7 21 234 150 270 159 1.09

196 Semi - ball 2.0 23x7 22 234 150 270 159 1.19

196 Full - ball 2.0 23x7 22 234 150 270 159 1.26

196 Semi - ball 2.5 23x7 22 234 150 270 159 1.48

196 Full - ball 2.5 23x7 22 234 150 270 159 1.56
10 - inch Turntable (15 pieces/box) 246 Semi - ball 2.0 28x8 23 303 195 337 205 1.9

246 Full - ball 2.0 28x8 24 303 195 337 205 1.98
10 - inch Turntable (10 pieces/box) 246 Semi - ball 2.5 28x8 23 303 195 337 205 2.35

246 Full - ball 2.5 28x8 24 303 195 337 205 2.43
12 - inch (8 pieces/box) 294 Full - ball 2.5 32x9 24 359 235 403 245 3.56
13 - inch (6 pieces/box) 331 Full - ball 2.5 32x9 23 405 265 452 245 4.41

Product Name: Furniture Turntable
Material: High - quality Cold - rolled Steel
Color: Baked Black Paint
Application Range:
Heavy - duty Machinery Turntable/Model Rotating Photography Platform/Rotating Exhibition Platform/Rotating Chair/Television Stand
The above measurements are manual, with slight errors. Please refer to the actual product dimensions.

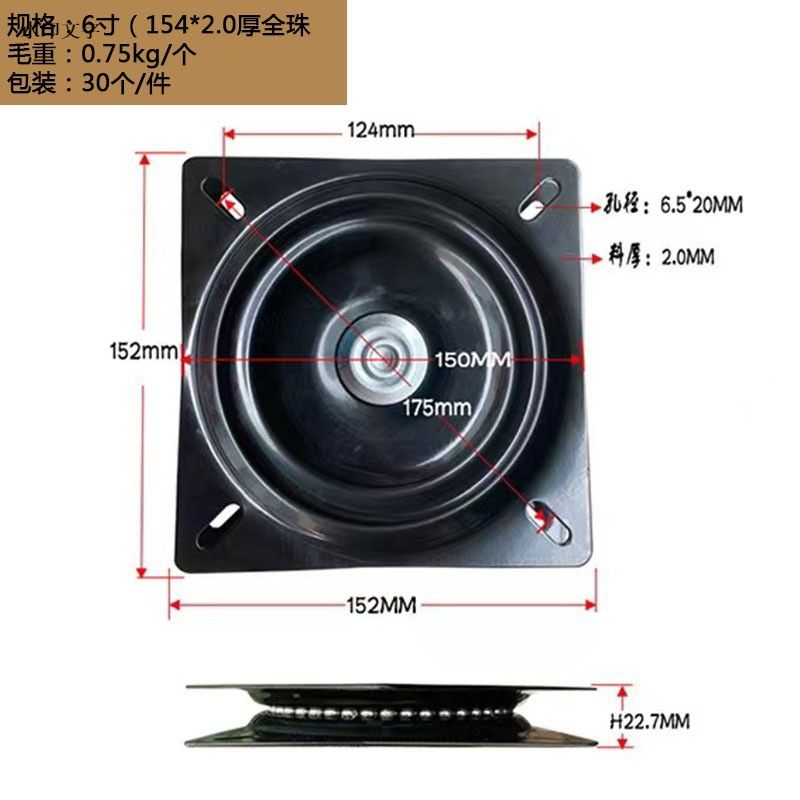

6寸 154x2全珠
