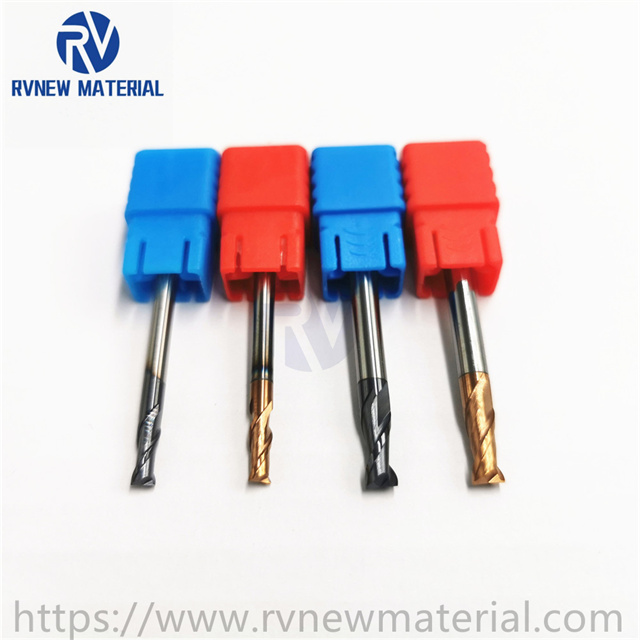

Features:
--The milling cutter is made of high quality tungsten steel material with stable performance and long service time.
--The use of new ultra-fine grain-sized tungsten steel material, makes the end mill a high wear resistance and
strength with an exclusive high-speed cutting.
--This carbide end mill has the characteristic of high toughness, special high-hardness, high-speed cutting, help saving time.
| Name | Tungsten Carbide End Mill |
| Shape | Square, Corner Radius, Ball Nose, Roughing, Taper Neck Ball Nose, Miniature Square, Miniature Ball Nose, Deep Groove Ball Nose, Deep Groove Square |
| Structure | Tiny diameter. Straight neck. Taper neck. Standard. |
| Material | Tungsten carbide raw material |
| Flutes | 2/3/4/5/6 flutes |
| Hardness | HRC45/55/60/65 |
| Helix Angle | 35°, 45° |
| Size | Dia 1-20mm, Overall length 50-150mm |
| Coating | NaNo TiAlCrN, NaNo TiAlXN, Nano TiAlN, TiAlN, AlTiN, CrN, AlCrXN ect. |
| Smooth Finish | Highly Polished |
| Feature | Excellent chip evacuation |
| Machining operation | Side face, Step shoulder, Straight slot, Deep flattened slot, Profile, Cavity, Ball nose slot, Deep ball nose slot, Radius shoulder, Radius corner slot ect. |
| Workpiece material | Carbon steel, Alloy steel, Pre-hardened steel, Hardened steel, Stainless steel, Cast iron, Nodular cast iron, Copper alloy, Aluminum alloy, Titanium alloy, Heat resistant alloy ect. |
Super Raw Material
| Type | Material | Co | Grain Size | Flexural Strength |
| HRC45 | YG10X | 10% | 0.7um | 3320 N/mm2 |
| HRC55 | YG10.2&WF25(Taiwan) | 10% | 0.6um | 4000 N/mm2 |
| HRC60 | K40,K44(Germany) | 12% | 0.5um | 4300 N/mm2 |
| HRC65 | H10F(Sweden) | 10% | 0.5um | 4300 N/mm2 |
Super Coating
| Type | Hardness (HV) | Thickness (UM) | Oxidation Temp(ºC) | Friction Coeffient | Color |
| AlTiN | 3200 | 2.5-3 | 900 | 0.3 | Black |
| TiAIN | 2800 | 2.5-3 | 800 | 0.3 | Violet |
| TiSiN | 3600 | 3 | 1000 | 0.45 | Copper |
| NACO | 42(GPA) | 3 | 1200 | 0.4 | Blue |
| Diameter (D) | Flute length (Lc) | Flute (Z) | Shank Diameter(d) | Overall length (L) |
| 1.0 | 2.5 | 4 | 4 | 50 |
| 1.5 | 4 | 4 | 4 | 50 |
| 2.0 | 5 | 4 | 4 | 50 |
| 2.5 | 6 | 4 | 4 | 50 |
| 3.0 | 8 | 4 | 4 | 50 |
| 4.0 | 10 | 4 | 6 | 50 |
| 5.0 | 13 | 4 | 6 | 50 |
| 6.0 | 15 | 4 | 6 | 50 |
| 8.0 | 20 | 4 | 8 | 60 |
| 10.0 | 25 | 4 | 10 | 75 |
| 12.0 | 30 | 4 | 12 | 75 |
| 12.0 | 30 | 4 | 12 | 75 |
| 14.0 | 32 | 4 | 14 | 100 |
| 16.0 | 45 | 4 | 16 | 100 |
| 20.0 | 45 | 4 | 20 | 100 |
Zhuzhou Rivictory New Material Co.,Ltd. is located in Zhuzhou, Hunan, which is Chinese industrial base.The main products are Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, we have our own research and development team, which can customize products according to customer's requests.
FAQ
1. Who are we?
Zhuzhou Rivictory New Material Co., Ltd. is located in Zhuzhou, Hunan, which is China's industrial base. The company's main products are tungsten carbide blanks, milling cutters, carbide rods,HSS drill bits, HSS bar, carbide burrs, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, the company has its own research and development team, which can customize products according to customer needs.
The company is committed to providing customers with the most suitable products and the best quality services and strives to promote our products to all parts of the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators.
4. Why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T, Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow.
