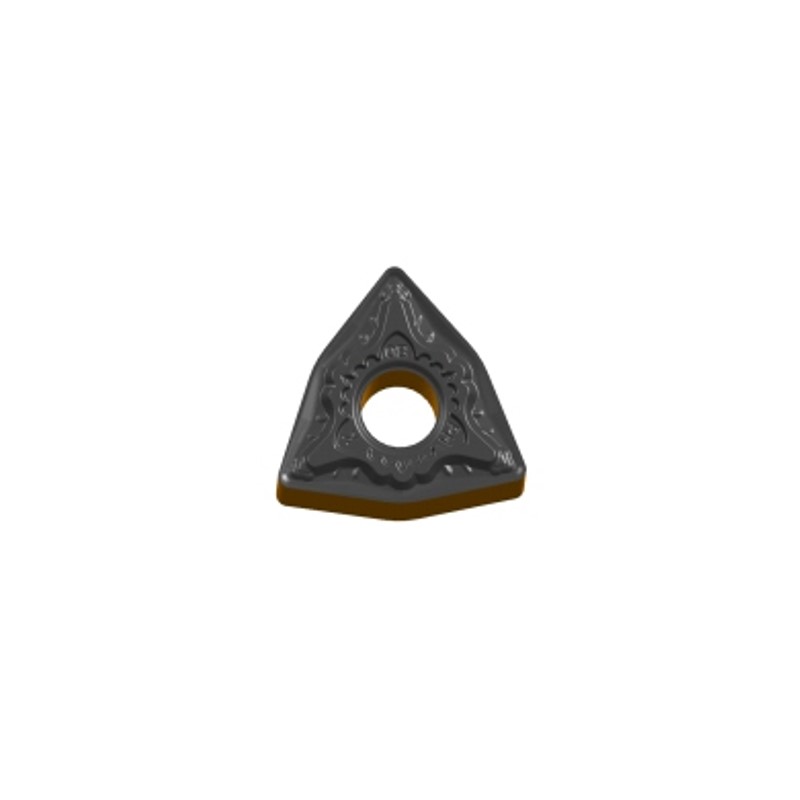

Carbide Inserts for CNC Indexable Cutting Tools Wnmg
You are here: Home » Products » Carbide Inserts » Turning inserts for steel » Carbide Inserts for CNC Indexable Cutting Tools Wnmg
Share to:

Carbide Inserts for CNC Indexable Cutting Tools Wnmg

Quantity:


Description:



The turning tool is the most widely used tool in metal cutting without signature.

It can be machined on lathe outside the circle, end plane, thread, internal hole, also can be used for cutting groove and cutting.



On the structure, the tool can be divided into integral tools, welding assembly tools, and mechanical clamping blades.



Mechanical clamping blade's turning tool can be divided into machine tool turning tool and indexable turning tool.



The cutting performance of mechanical clamping tools is stable, and workers do not have to grind them, so it is applied more and more in modern production.



Product Details

Product        General Turning Inserts for Steel
Type CNC Insert
Model Number CNMG DNMG SNMG TNMG VNMG WNMG CCMT DCMT SCMT TCMT etc
ISO Grade P10 P20 P30 K10 K20 K30
Advantage High Quality and Good Service
Color yellow,black,gray
Usage Cutting Tool
Coating
CVD/ PVD /Carbide (Uncoating)


Product Show

General Turning Insert for Steel  (CCMT )

钢件-CC

产品
Inserts Shape
型号
Type
尺寸 Dimensions(mm)
ØI.C 厚度
T
内孔Φd 刀尖圆角
Re
第12页-37 CCMT060204-PMK 6.35 2.38 2.8 0.4
CCMT060208-PMK 6.35 2.38 2.8 0.8
CCMT09T304-PMK 9.525 3.97 4.4 0.4
CCMT09T308-PMK 9.525 3.97 4.4 0.8
CCMT120404-PMK 12.7 4.76 5.56 0.4
CCMT120408-PMK 12.7 4.76 5.56 0.8



General Turning Insert for Steel  (WNMG )

钢件-WN

产品
Inserts Shape
型号
Type
尺寸 Dimensions(mm)
ØI.C 厚度
T
内孔Φd 刀尖圆角
Re
第12页-40 WNMG060408-PMK 9.525 4.76 3.81 0.8
WNMG060412-PMK 9.525 4.76 3.81 1.2
WNMG080404-PMK 12.7 4.76 5.16 0.4
WNMG080408-PMK 12.7 4.76 5.16 0.8
WNMG080412-PMK 12.7 4.76 5.16 1.2
第12页-39 WNMG080404-PR 12.7 4.76 5.16 0.4
WNMG080408-PR 12.7 4.76 5.16 0.8
WNMG080412-PR 12.7 4.76 5.16 1.2





第12页-38 WNMG080404L/R-X 12.7 4.76 5.16 0.4
WNMG080408L/R-X 12.7 4.76 5.16 0.8
WNMG080412L/R-X 12.7 4.76 5.16 1.2





第12页-41 WNMG080404 12.7 4.76 5.16 0.4
WNMG080408 12.7 4.76 5.16 0.8
WNMG080412 12.7 4.76 5.16 1.2
