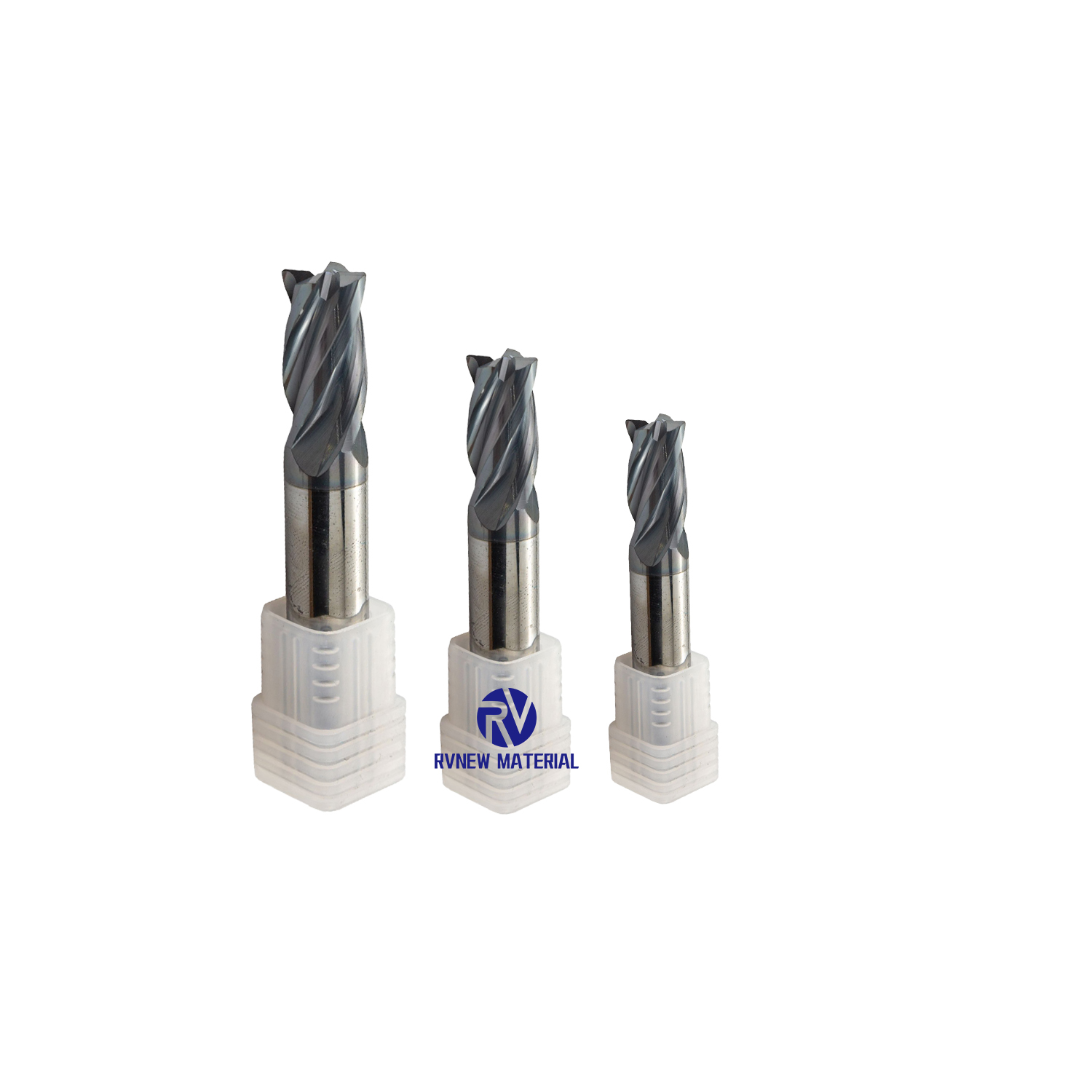

End mill
RV
100
50000pieces/Month
L/C, T/T, Western Union, Paypal
Specification
D |
Le |
d |
L | Flutes |
1.0 | 2.5 | 4 | 50 | 2 |
1.5 | 4 | 4 | 50 | 2 |
2.0 | 5 | 4 | 50 | 2 |
2.5 | 6 | 4 | 50 | 2 |
3.0 | 8 | 4 | 50 | 2 |
4.0 | 10 | 6 | 50 | 2 |
3.0 | 8 | 6 | 50 | 2 |
4.0 | 10 | 6 | 50 | 2 |
5.0 | 13 | 6 | 50 | 2 |
6.0 | 15 | 6 | 50 | 2 |
8.0 | 20 | 8 | 60 | 2 |
10.0 | 25 | 10 | 75 | 2 |
12.0 | 30 | 12 | 75 | 2 |
14.0 | 32 | 14 | 75 | 2 |
16.0 | 45 | 16 | 100 | 2 |
20.0 | 45 | 20 | 100 | 2 |
Raw material description
Grade | ISO Range | WC+Co(%) | WC grain size(um) | Density(g/cm3) | Hardness | Properties&Application | |
Hv30 | HRA | ||||||
RV06U | K05-K10 | 93.5+6.5 | 0.6 | 14.85 | 1890 | 93.5 | High cutting speed milling. For drilling, milling of plastic composites, PCB, ceramics, woods, and MDF. |
RV09U | K10-K20 | 91+9 | 0.4 | 14.50 | 1890 | 93.5 | High cutting speed milling, finishing Hardness steel, plastics, fiber-reinforced materials, HRC55-65. |
RV10S | K20-K40 | 90+10 | 0.8 | 14.42 | 1600 | 91.5 | High cutting speed milling, and drilling For general usage, suitable for all kinds of material below HRC45. |
RV12S | K20-K40 | 88+12 | 0.6 | 14.12 | 1580 | 91.2 | Specially designed for machining stainless steel. For use on stainless steel, nickel-based alloys, titanium alloy, and special alloy. |
RV25S | K20-K40 | 88+12 | 0.4 | 14.10 | 1750 | 92.5 | Suitable for finishing processing, and roughing of steels with hardness between 45 and 55HRC, steels for surface treatments, nickel alloys. |
RV30S | K20-K40 | 88+12 | 0.6 | 14.10 | 1680 | 92.0 | Perfect balance for hardness and toughness. For general usage and can provide an extremely long life. |
Coating description
Coating item | AlTiN | TiAlN | TiSiN | Naco |
Haedness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(um) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
Package: 1 PCS in a plastic tube, 10 PCS per group. Packed in a carton, protected with bubble film.
Company profile:
We are professional tungsten carbide end mills, rods and carbide blanks manufacturer with experience more than 15 years. We start online sales in July 2020. The company has introduced dozens of internationally advanced CNC five-axis CNC tool grinders, and a variety of size and performance testing equipment, and has advanced PVD coating technology. Apart from the standard size tungsten carbide products, we can also produce the non-standard size carbide products according to your required size or drawing paper. All the products with ISO approved.
Factory production process:
Whether you know exactly what type of carbide end mill is required or need to discuss the options with an expert. we are here to help.
Contact us for more information.
